Unveiling the Importance of Maintaining the LEV, GV System within the Acceptable Range Of Efficiency : VENTILATION SYSTEM FLOW RATE MEASUREMENT

In the day to day operational means of the industrial ventilation system providing minimal comfort or combating heat and airborne hazard exposure, there is one important element of operation which ensures the sustenance of the efficiencies - the flow rate measurement. Often underestimated and not understood, the accurate measurement of flow rates is the primary control of the overall system performance,  ensuring the seamless performance, energy savings, and endurance of diverse systems. In this blog post, we embark on a journey to unravel the importance of flow rate measurement, the hurdles it presents, and why embracing our simple but accurate flow rate measuring system can ensure your system's capabilities in meeting in objectivity at all times while implementing accurate preventive maintenance protocol.



Establishing the system to gauge Flow Rate Measurement For Continuous Efficiency:



Unleashing Precision in Performance:



At the heart of optimal performance lies the ability to wield precision monitoring in flow rate measurement. Whether guiding an industrial ventilation system in local capture the airborne contaminant, mitigate heat stress or fine-tuning an HVAC system for ideal air change per hour as per design basis, the establishment of precise flow rates monitoring system is the primary control for systems operating at their highest efficiency.



Cultivating Energy Efficiency:



In the era of eco-conscious industries, flow rate measurement emerges as the control element of energy efficiency. By maintaining the perfect flow rates, systems can seamlessly reduce energy consumption, culminating in significant cost savings and a reduced carbon footprint.



Safeguarding Equipment's Reliability:



Consider flow rate measurement as primary control of the performance . By maintaining the right flow rates, the monitoring system prevents undue stress on fan motors,  curbing wear and tear, and ultimately extending the operatic lifespan of drive system. The fluctuation in flowrate dictates the variance in resistance build up across the system.



Navigating the Flow Rate Measurement Importance:

The limitation:

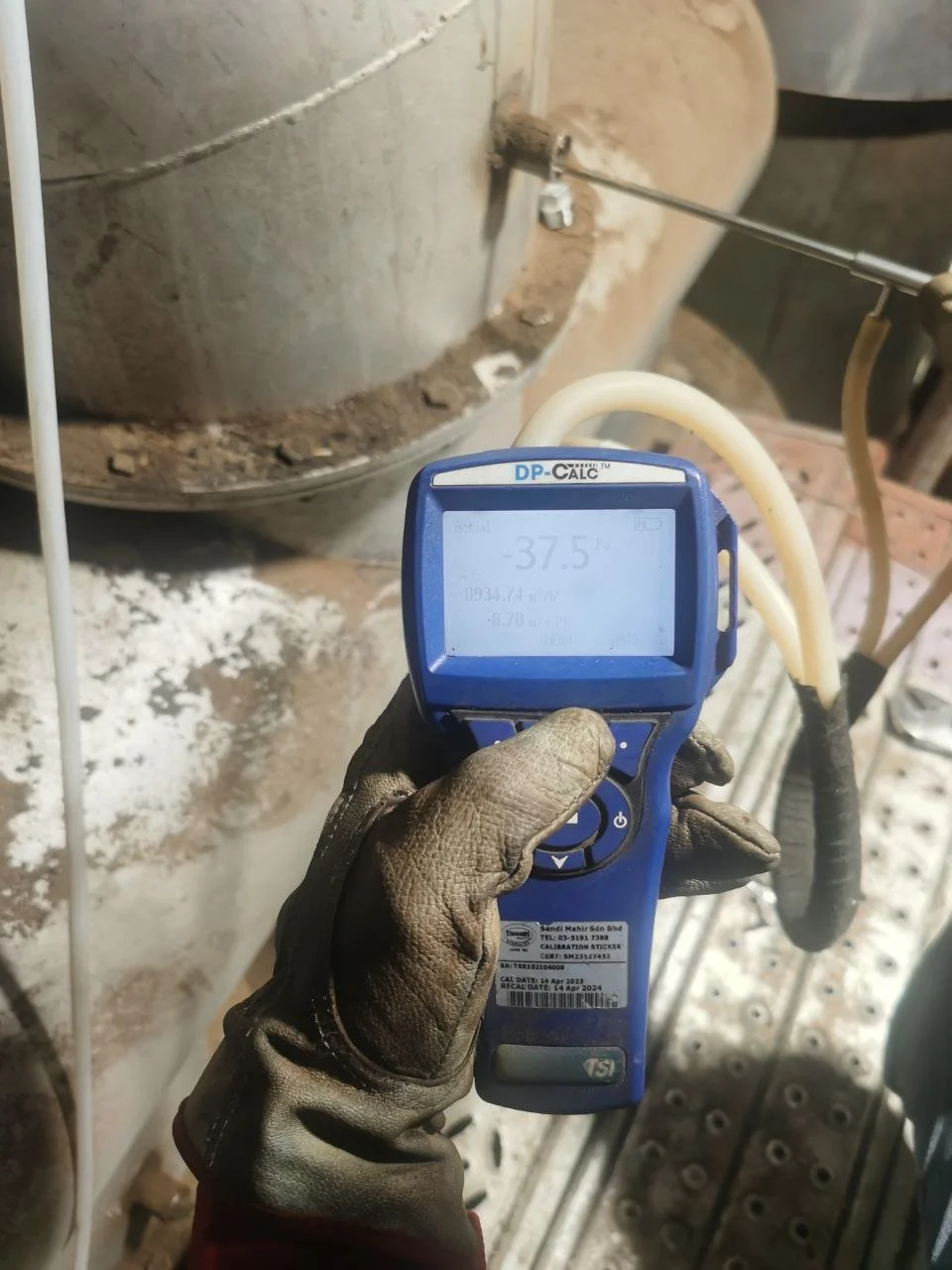

Vapor pressure across any enclosed plane such as a duct is very dynamic. The selection and placement of the pitot tube needs to be methodically done taking into consideration the effect of adequacy of sampling lines and traverse points  to ensure high accurate results are obtained instead of a erroneous ones.



Overcoming the Limitation :-

To counter these challenges, [E8 presents a complete solution for a high accurate measurement. Here's why it's a complete solution:



High Accuracy, Low Turbulence:

  - The selection of the sampling plane is done at laminar zone with adequate number of sampling lines and traverses to ensure homogenous representation (accuracy). Instead of just using the basic rule of thumb such as minimal 5 times diameter from disturbance and etc, we cater the pitot tube size and number of the tubes to be placed based on the size. A smaller duct has smaller variance in terms of its velocity pressure's dynamic profile (changes) across its plane. However for bigger duct >12 and more, the dynamic changes across the traverses are so wide needing more sampling lines ( with traverses covering all around the cross section). We in E8 design the selection in a very precise manner using relevant standards such as ASTM, ACGIH and MS from the picking the right length pitot tube to establishing calibration and correction factor providing the highest accuracy in direct flow meter reading. Our system redefines precision, providing trustworthy data for crucial decision-making moments.

 Calibration Simplified:

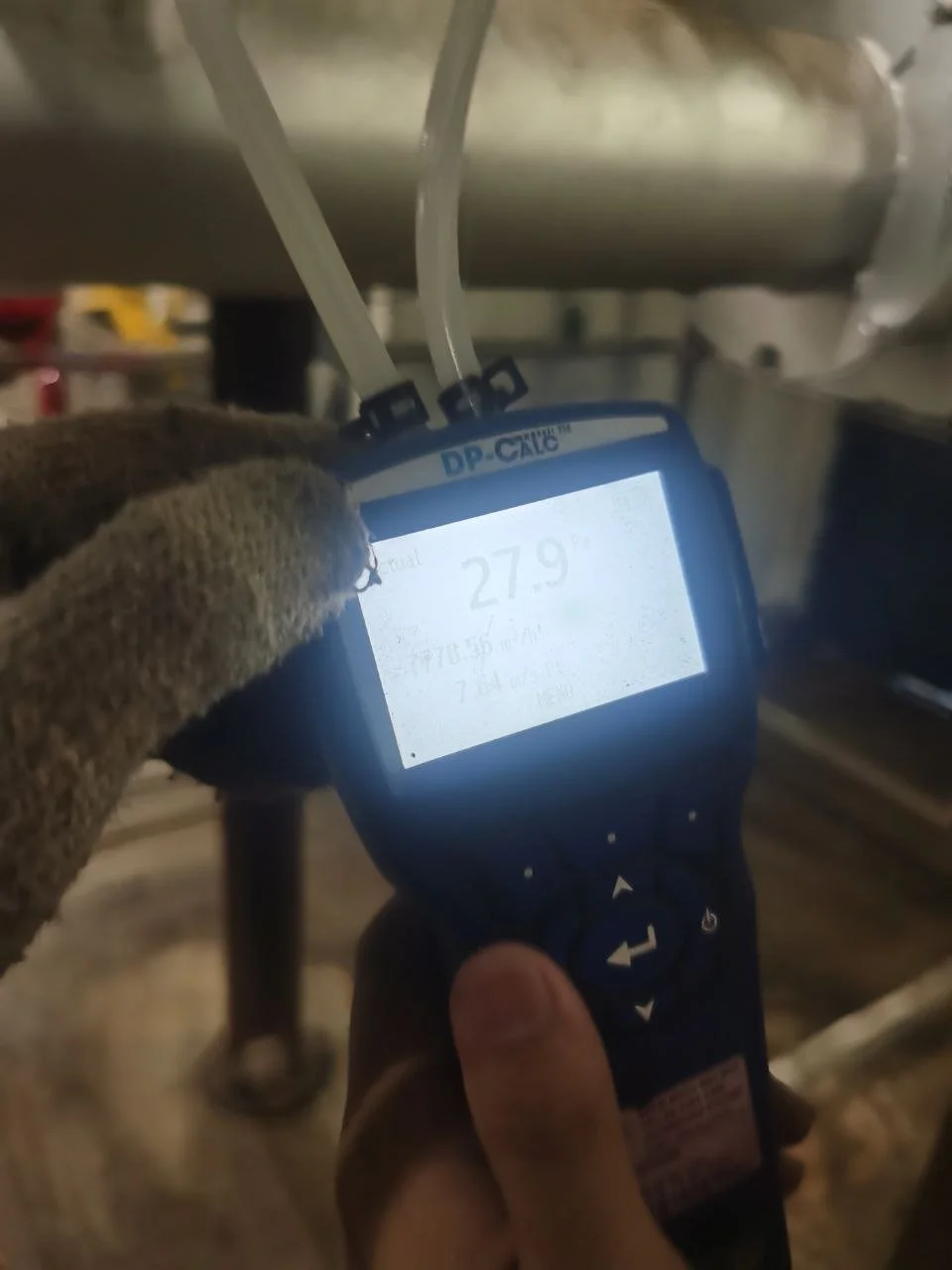

  - Bid farewell to calibration complexities. Our flow rate measurement system is engineered for accuracy, minimizing the risk of calibration errors that can plague other systems. The final derivation of the measurement results take into consideration of constants and calibration factors, just needing periodic verification with a portable units to validate any deviation. We at E8 use data management with portable unit validation to ensure the results provided from the flow meter measuring system is highly accurate regardless the pitot tubes being static.



Testimonials of Triumph:

  - Dive into real-world success stories and case studies where our system has left an indelible mark, optimizing performance and delivering tangible results for our esteemed clients such as SUPERFOOD, S3 TECHNOLOGIES, MATRIX FLAVOURS and etc.



Curtain Call: Elevate Your System's Performance Today!

In conclusion, the often-overlooked realm of flow rate measurement emerges as the unsung hero in the grand performance of systems. Investing in our revolutionary system not only tackles common challenges but propels your system towards enhanced efficiency, energy savings, and lasting endurance. At E8 Group, we comprehend the essence of precision in flow rate measurement, and our avant-garde solution is poised to transform your system's performance.



Illuminate the path to excellence. Explore the possibilities with E8 Group's flow rate measurement system and seize command of your system's destiny.
